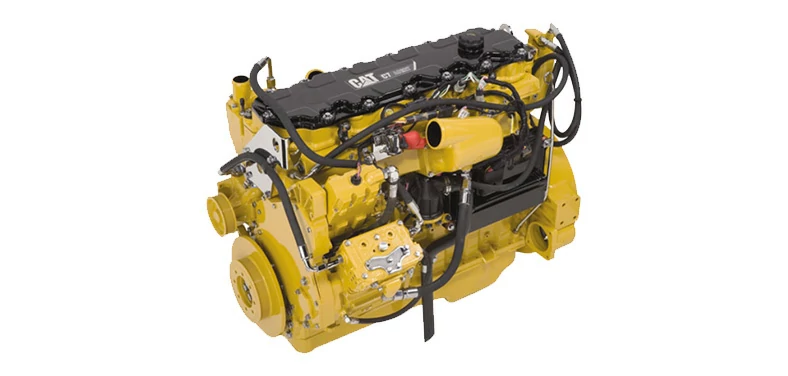

Caterpillar C7 Industrial Engine

Caterpillar C7 Industrial engine is a Inline 6, 4-Stroke-Cycle Diesel engine with 110 mm(4.33 in) bore and 127 mm(5 in) stroke. Equipped with Weifu A pump and RSV governor, engine comes with turbocharger.

The prime power for at 2200 RPM of Caterpillar C7 Industrial Diesel engine is 168 kW.

As part of EMAC, ConeMac provides industrial power pack solution that integrated with air intake, air exhaust, cooling system, control system, transmission and hydraulic accessories, We also supplying special products such as explosion proof engine, generator and water pump set, as well as ultra-low temperature condition engine power pack.

We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.

Advantages of C7 Industrial Engine

  • Worldwide Supplier Capability : Caterpillar, Casts engine blocks and heads, Machines critical components, Assembles complete engine, Factory-designed systems built at Caterpillar ISO9001:2000 certified facilities, Ownership of these manufacturing processes enables Caterpillar to produce high quality, dependable product.

  • Unmatched Product Support Offered Through Worldwide Caterpillar Dealer Network : More than 1,500 dealer outlets Caterpillar factory-trained dealer technicians service every aspect of your industrial engine 99.7% of parts orders filled within 24 hours worldwide Caterpillar parts and labor warranty Preventive maintenance agreements available for repair before failure options Scheduled Oil Sampling program matches your oil sample against Caterpillar set standards to determine : internal engine component condition, presence of unwanted fluids, presence of combustion by-products.

  •  Full Range of Attachments : Wide range of bolt-on system expansion attachments, factory designed and tested.

  • Testing : Prototype testing on every model : proves computer design, verifies system torsional stability, functionality tests every model Every Caterpillar engine is dynamometer tested under full load to ensure proper engine performance.

    Technical Specifications

    Basic Introduction of Caterpillar C7 Industrial Engine

    Engine Model:C7
    Engine Type:Inline 6, 4-Stroke-Cycle Diesel
    Displacement:7.2 L
    Rated Speed:1300 – 2200 RPM
    Aspiration Method:Turbocharged ATAAC
    Emission Standard:U.S. EPA Tier 3 Interim Equivalent
    Bore*Storke:110 mm (4.33 in) * 127 mm (5 in)
    Packing Size(L*W*H):1052.7 mm * 758.2 mm * 1032.1 mm
    Weight , Net Dry:588 kg (1296 lb)
    Lead Time:15-30 Working Days
    Payment Terms:T/T ,L/C

    Engine Model

    Rated Power

    Aspiration

    Emissions

    C7168 bkW (225 BHP) @ 2200 RPMTurbocharged ATAACMeets U.S. EPA Tier 3, EU Stage IIIA Emission
    Requirements
    —-END—-

    General Engine Specifications of CAT C7 Industrial Engine

    Engine ConfigurationI-6, 4-Stroke-Cycle DieselBore110 mm (4.33 in)
    Stroke127 mm (5.0 in)Displacement7.2 L (442 in³)
    AspirationTurbocharged Aftercooled (TA)Rotation From Flywheel EndCounterclockwise
    Length1052.7 mm (41.44 in)Width758.2 mm (29.85 in)
    Height1032.1 mm (40.63 in)Weight588 kg (1296 lb)
    Compression Ratio17 : 1Combustion SystemDirect Injection
    —-END—-

    CAT-C7-Industrial-Engine-Curves-787x724

    CAT-C7-Industrial-Engine-Curves-719x361

    System of CAT C7 Industrial Diesel Engine

    Air Inlet SystemAir to Air Aftercooled (ATAAC)Exhaust SystemExhaust Manifold, Dry
    TurbochargedOptional Exhaust Outlet
    Control SystemElectronic Governing, PTO Speed ControlLube SystemCrankcase Breather
    Programmable RatingsOil Cooler
    Cold Mode Start StrategyOil Filler
    Automatic Altitude CompensationOil Filter
    Power Compensation for Fuel TemperatureOil Pan Front Sump
    Programmable Low and High Idle and Total Engine LimitOil Dipstick
    Electronic Diagnostics and Fault LoggingOil Pump (Gear Driven)
    Engine Monitoring System J1939 Broadcast (Diagnostic and Engine Status)N/A
    ADEMTM A4 Electronic Control Unit (ECU)N/A
    Fuel SystemHEUITM InjectionCooling SystemThermostats and Housing, Vertical Outlet
    Fuel Filter, Secondary (2 Micron High Performance)Jacket Water Pump, Centrifugal
    ACERTTM TechnologyWater Pump, Inlet
    Fuel Transfer PumpN/A
    Fuel Priming PumpN/A
    —-END—-

    Standard of CAT C7 Industrial Engine

    Fuel System1. Fuel Transfer PumpExhuast System1. Exhuast Manifold
    2. High-Pressure Fuel Pump2. Turbocharger
    3. Fuel Filter3. Exhuast Elbow
    Air Intake System1. Air Intake ManifoldStarting System1. Starter Motor
    2. N/A2. Starter Rely
    Cooling System1. Water PumpPower Output System1. Flywheel
    2. Engine Fan2. Standard Flywheel Housing
    3. Standard Radiator3. N/A
    Lubricating System1. Oil PumpCharging System1. Charging Alternator
    2. Oil Filter2. N/A
    Engine Shut-Down System1. Engine Fuel Shut-Off SolenoidrEngine Mounting System1. Engine Mouting Bracket
    Engine Auiliary Accessories1. Air Compressor
    ——END——

    Optional Accessories of CAT C7 Industrial Engine

    Air Intake System1. Air Intake Pre-HeaterExhuast System1. Muffler & Bellows
    2. Air Intake Shut-Off Valve2. Flame Trap
    3. Air Filter3. Spark Arrestor Type Muffler & Bellows
    4. Air Intake Pre-Filter4. Dpf System
    5. Air Filter Alarm System5. N/A
    Fuel System1. Coarse FilterLubricating System1. Oil Pre-Heater
    2. Fuel Pre-Heater2. N/A
    Starting System1. Manual Magnetic DC ContactorCooling System1. Silent Type Radiator
    2. Dual Ears Flywheel Housing2. Plateau Radiator
    3. Spring Starter Motor3. Salt-Spray Resistant Radiator
    4. Air Starter Motor4. Coolant Pre-Heater
    5. Hydraulic Starter Motor5. Jacket Water Heater
    6. Manual Magnetic DC Contactor6. N/A
    Engine Auiliary Accessories1. Hydraulic Oil PumpControl System1. Can Add Engine Monitoring System, Contro System with Wiring Harness
    2. Air Conditioner Compressor2. Can Add Self-Protection System That Integrated with Alarm System
    Power Output System1. ClutchEngine Mounting System1. Shock Absorber Pad
    ——END——

    Modifiable Components of CAT C7 Industrial Engine

    Air Intake System1. Installation Position of Air FilterCharging System1. 12 V Charging Alternator for 12 V Electric System
    2. Upgrade to Heavy-Duty Type Air Fitler2. Explosion-Proof Charging Alternator
    3. N/A3. Upgrading to Specified Brand and Speicifications of Charging Alternator
    Exhuast System1. Water-Cooled Exhuast ManifoldLubricating System1. Oil Pan Position
    2. Water-Cooled Turbocharger2. Number of Dipstick
    3. Can Modify Installation Position and Direction of Turbocharger3. Position of Dipstick Can Choose From 6 Positions
    4. N/A4. Can Modify Oil Filter to Be Remote Installation
    Engine Shut-Down System1. 12 V Solenoid for 12 V Electric SystemStarting System1. Upgrading to Specified Brand and Speicifications of Starter Motor
    2. Explosion-Proof Solenoid2. 12 V Starter Motor for 12 V Electric System
    Fuel System1. Upgrade to Fuel Fitler That Integrated with Fuel Transfer Pump and Fuel Pre-HearterEngine Auiliary Accessories1. All of auxiliary System Can Choose Specified Brands and Specifications
    2. N/A2. Additional Auxiliary Systems Can Be Added for Special Applications
    Cooling System1. Can Modify Engine Fan Into Blower Fan or Suction FanPower Output System1. Can Modify Size of Flywheel Housing and Flywheel
    2. Can Modify Central Position of Engine Cooling Fan2. Dual-Ear Flywheel Housing (for Twin-Starter System)
    3. Can Choose Type of Engine Fan From Mechanical Type or Electric Type3. Some of Models Can Modify Flywheel Housing Into PTO Integrated Type
    4. N/A4. Engine Have Connecting Port of PTOs, That Able to Provide Power Output
    Engine Mounting System1. Can Modify Engine Mouting Bracket
    ——END——

    Note: All Above Data are Just for Referenece, All Data Might Change Without Notices or Update, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.

    The picture of Sale Manual showing the accessories and scopes of supply.

    Engine Sale Manual

    The picture of Installation Drawing showing the accessories and scopes of supply.

    Installation Drawing

    The picture of Installation Manual showing the accessories and scopes of supply.

    Installation Manual

    The picture of Operation Manual showing the accessories and scopes of supply.

    Operation Manual

    The picture of Engine Parts Catalogue showing the accessories and scopes of supply.

    Parts Catalogue

    The picture of Test Report and Certifcate showing the accessories and scopes of supply.

    Report & Certifcate
