Caterpillar 3512 Marine Main Engine

The Caterpillar 3512 engine is a powerful and efficient engine with the following advantages: Powerful power output: The Caterpillar 3512 engine uses a V12 cylinder arrangement, has a larger displacement and more cylinders, and is able to provide high horsepower and torque output. This gives it excellent power performance in heavy machinery and industrial applications. High reliability and durability: The Caterpillar 3512 engine uses a durable design and manufacturing process to ensure reliability and durability. It has undergone rigorous testing and verification, and can operate for a long time in difficult environments without damage. Fuel economy: The Caterpillar 3512 engine uses advanced combustion technology and fuel systems to efficiently utilize fuel and reduce energy consumption and emissions.

This allows it to maintain low fuel consumption in long running and high load operating conditions. Easy maintenance and repair: The Caterpillar 3512 engine has a modular design that makes it easy to maintain and repair. The layout of key components is reasonable, easy to check and replace, reducing the cost and time of maintenance. Compatibility: The Caterpillar 3512 engine is versatile in size and interface design, and can be used with a variety of different equipment and projects. This compatibility makes it flexible across a wide range of industries and applications. In short, the Caterpillar 3512 engine has a powerful and reliable power output, high fuel economy, easy maintenance and repair, and a wide range of compatibility, which makes it widely used in a variety of heavy machinery equipment and industrial applications.

Advantages of 3512 Marine Main Engine

1.Air Inlet SystemCorrosion resistant separate circuit freshwater
aftercooled, powercore air cleaner.
2.Control SystemDual Caterpillar® A3 Electronic Control Unit (ECU) LHwith electronic unit injector fuel system rigid wiringharness (10 amp DC power required to drive ECU).
3.Exhaust SystemDry gas-tight exhaust manifolds with heat shields, dualturbochargers with watercooled bearings and heat shieldWastegate on select ratings.

4.InstrumentationMarine Power Display of: Engine oil pressure, enginewater temperature, fuel pressure, engine speed, fuel
consumption, overspeed shutdown notification light,prelube and shutdown override.

Caterpillar 3512 Series Marine Main Engine

This is the list of all series of Caterpillar 3512 Series Marine Main Engine.
Click here to find marine main engines by type (Fuel System & Emission Standard).

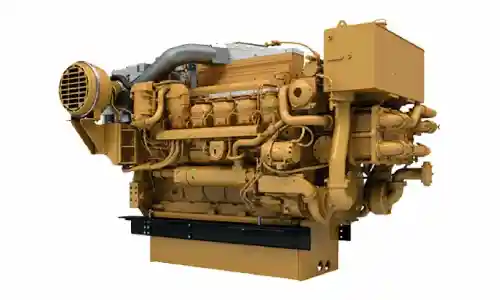

3512C-SS-ME1400 Marine Main Engine

3512C-SS-ME1400 Marine Main Engine

Rated Power:1044 HP 1600 @ RPM
Engine Type :V-12, 4-Stroke-Cycle-Diesel
Bore x Strock :170.0 mm * 190.0 mm
Displacement :51.8 L (3161 cu in)
Emission Standard : IMO II

3512C-SS-ME1500 Marine Main Engine

3512C-SS-ME1500 Marine Main Engine

Rated Power: 1118 HP 1600 @ RPM
Engine Type:V-12, 4-Stroke-Cycle-Diesel
Bore x Strock:170.0 mm * 190.0 mm
Displacement :51.8 L (3161 cu in)
Emission Standard: IMO II

3512C-SS-ME1600 Marine Main Engine

3512C-SS-ME1600 Marine Main Engine

Rated Power:1118 HP 1600 @ RPM
Engine Type:V-12, 4-Stroke-Cycle-Diesel
Bore x Strock:170.0 mm * 190.0 mm
Displacement:51.8 L(3161 cu in)
Emission Standard: IMO II

Caterpillar 3512E Marine Main Engine

Caterpillar 3512E Marine Main Engine

Rated Power:1901 HP 1800 @ RPM
Engine Type:V-12, 4-Stroke-Cycle-Diesel
Bore x Strock:170 mm * 215 mm
Displacement:58.6 L / 3574 cu in
Emission Standard: IMO II-III
